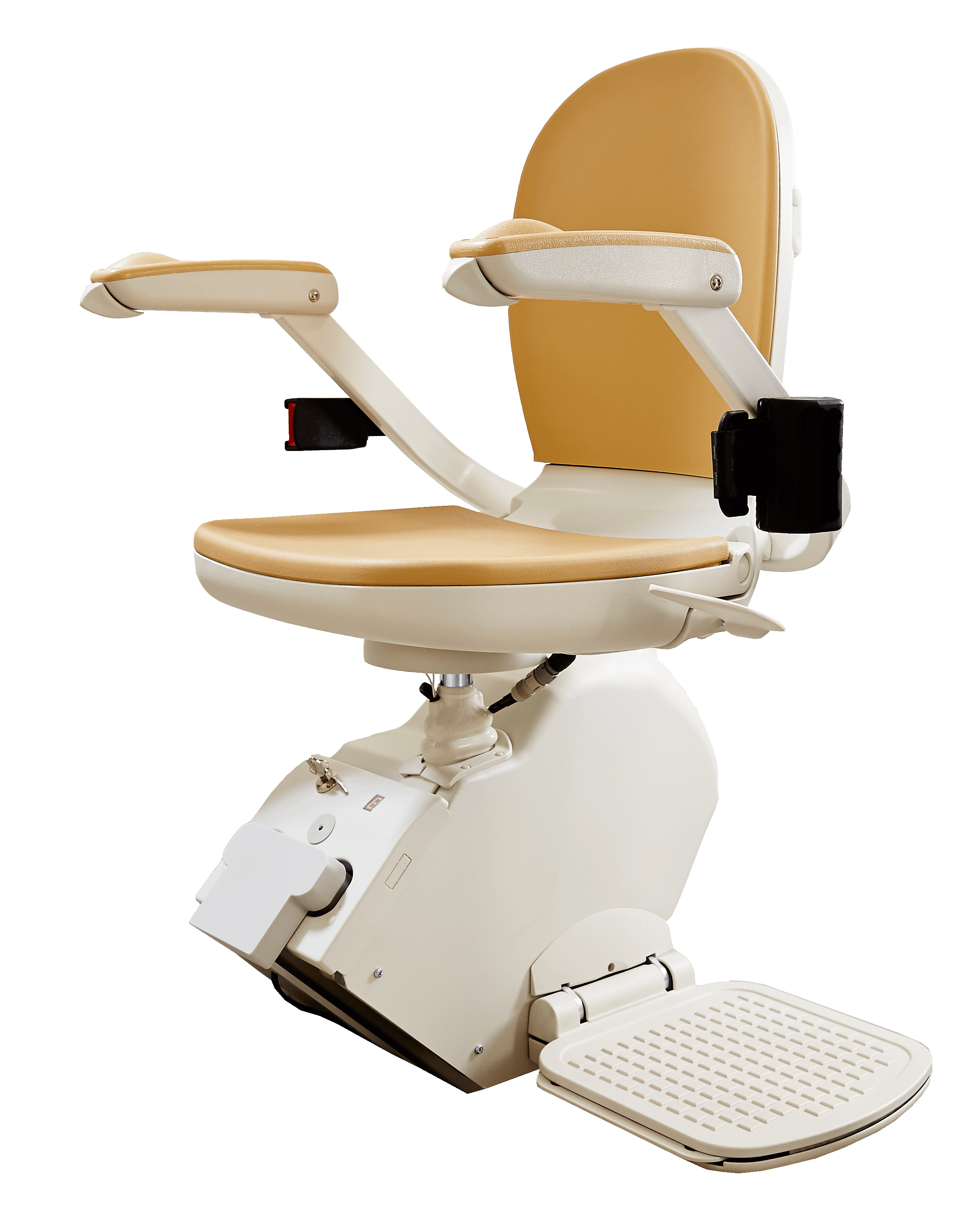

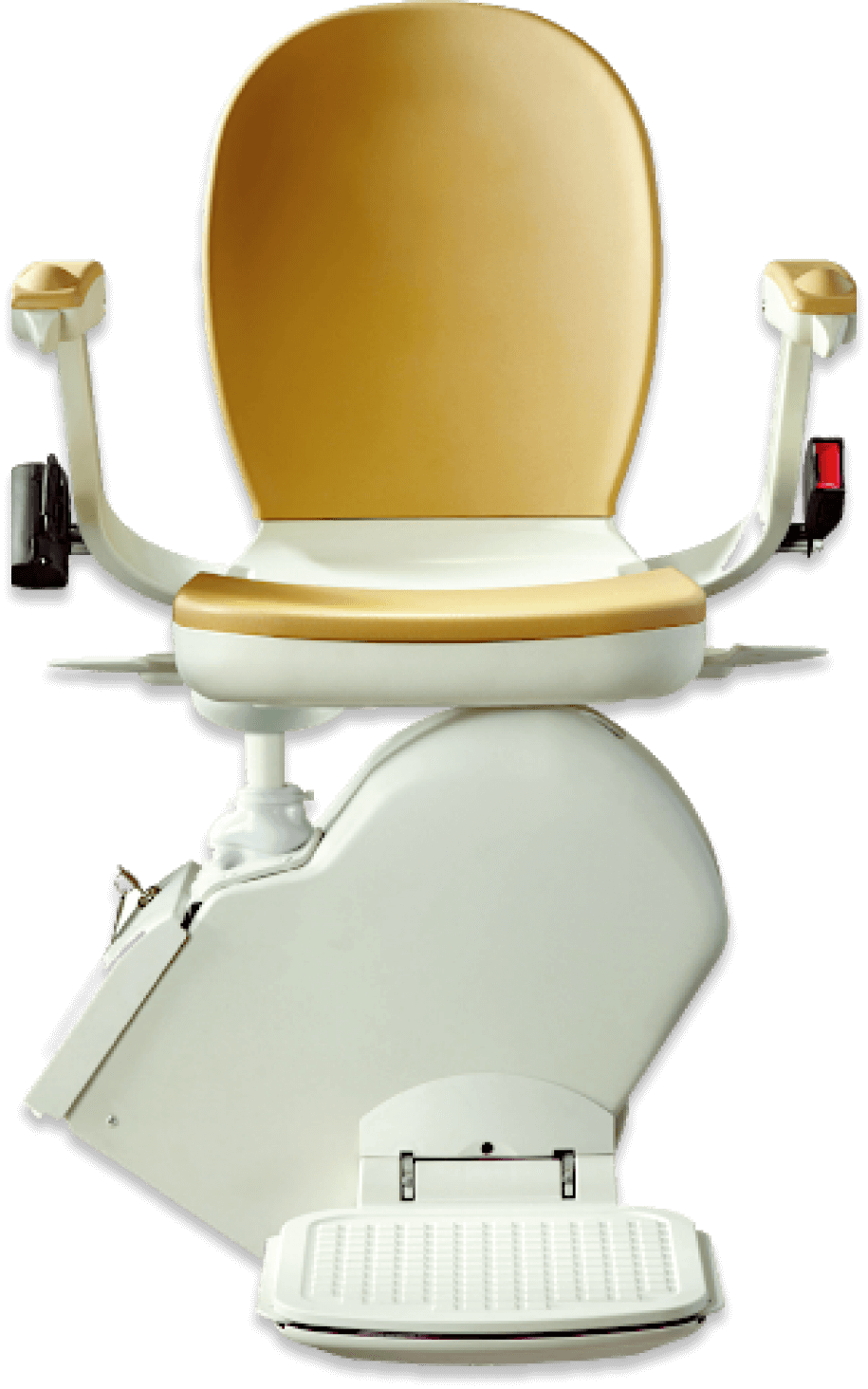

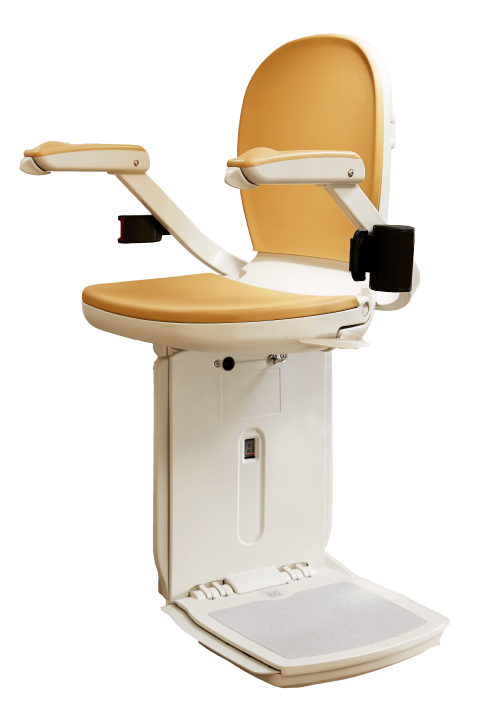

Acorn 130 Outdoor Stairlift

Gain access to all outdoor spaces of your home in Michigan with the custom designed Acorn 130 Outdoor Stairlift.

Quick and easy fit to the stairs, not the wall

No structural changes needed to your home

Slim line design, and with the ability to fold away when not in use

Inertia seatbelt fitted as standard

Maximum weight of 300lbs

CLICK HERE FOR TECHINAL DETAILS

Seat	Standard Indoor 130	Power Swivel 130	Outdoor 130
Short seat post	40-55Â°	N/A	N/A
Standard seat post	29-55Â°	36-55Â°	27-55Â°
Tall seat post	23-55Â°	23-55Â°	N/A

Maximum Rail Length
10 metres	394 inches

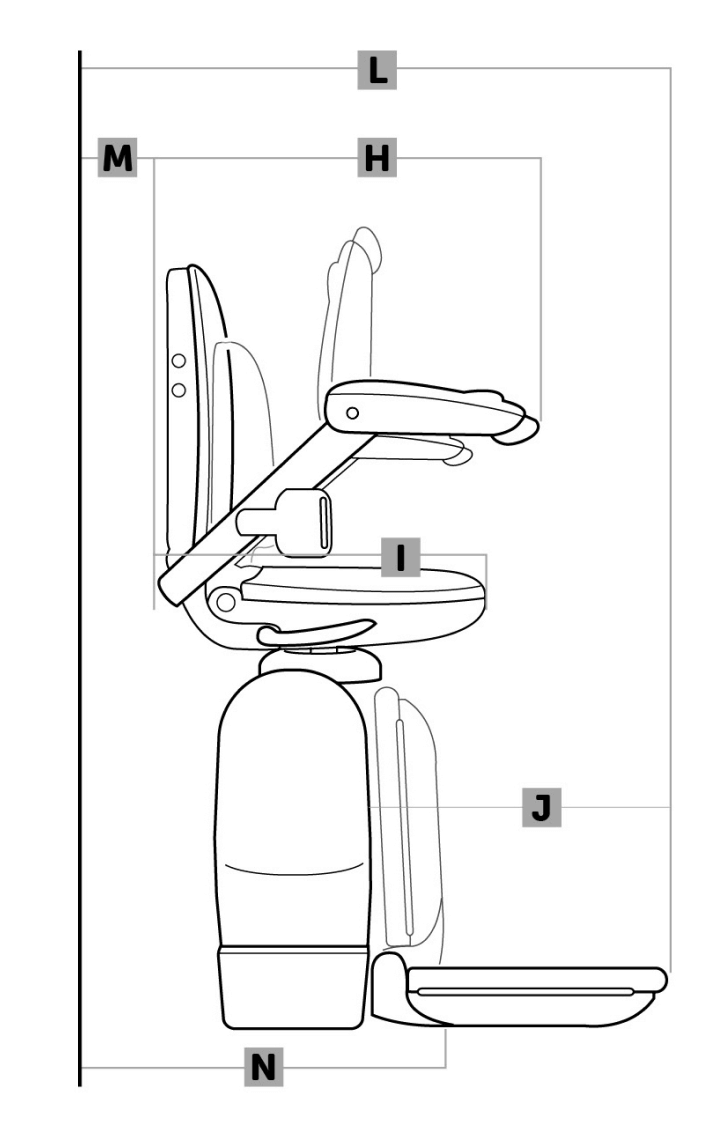

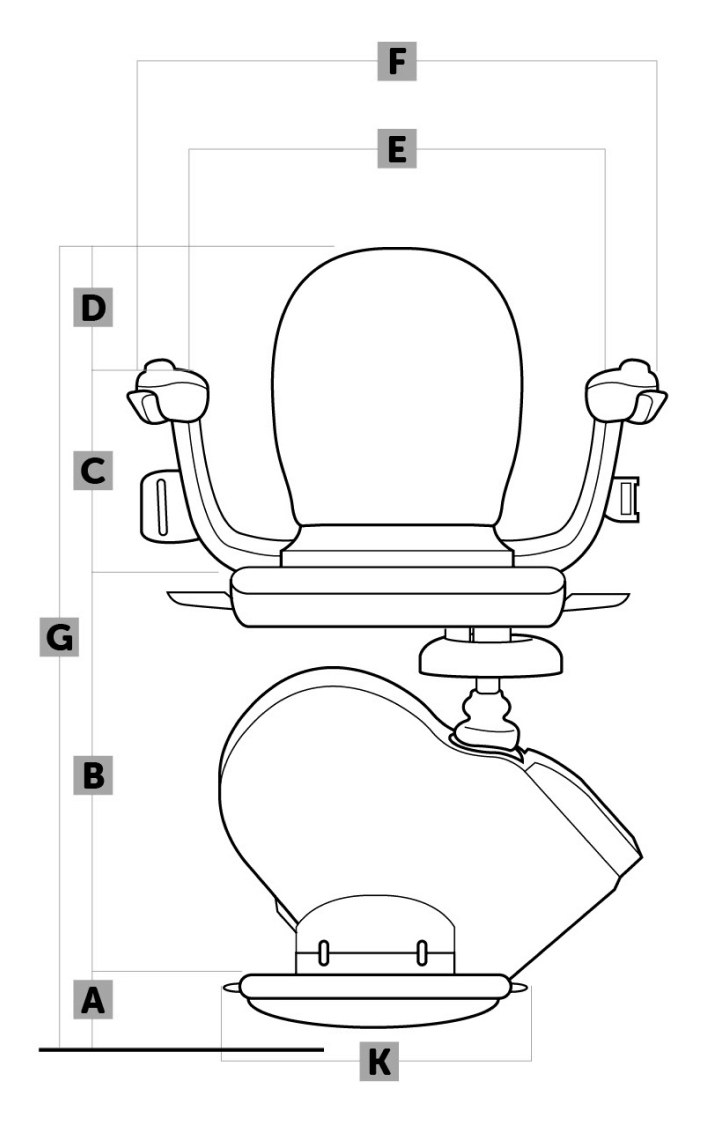

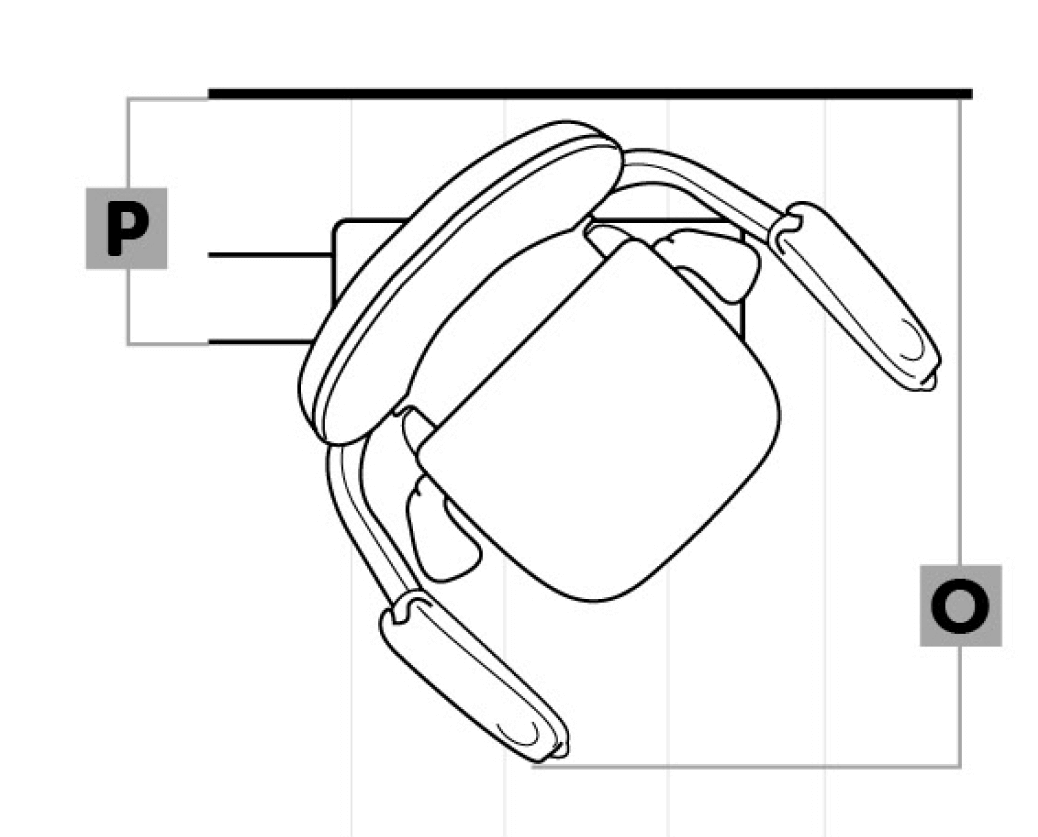

Dimensions		mm	inch
A	Floor to top of footrest	95	3.75
B	Top of footrest to top of seat (Short) (Tall)	445 (410) (505)	17.5 (16.25) (19.75)
C	Top of seat to top of arms	250	9.75
D	Top of arms to top of seat back	190	17.5
E	Width between armrests (Wide arm version)	445 (495)	17.5 (19.5)
F	Overall width	605	23.75
G	Overall height to floor	980	38.5
H	Length of arms from seat back	470	18.5
I	Length of seat base from seat back	435	17
J	Length of footrest	325	12.75
K	Width of footrest	310	12.25
L	Front of footrest to stringer	570	22.5
M	Back of seat to stringer	13	0.5
N	Folded width	310	12.25
O	Minimum width required to swivel at top	670	26.25
P	Distance from front of rail to stringer (Wide arm version)	215 (240)	8.5 (9.5)

Specifications
Motor output speed	No greater than 0.15 metres per second
Method of drive	Rack and Pinion
Carriage Power	24v DC batteries
Motor Power	0.25KW
Maximum capacity	127kg
Maximum capacity HD version	159kg
Power supply input range	50-60Hz, 120-240V AC

Acorn outdoor stairlift installation in michigan

Installing the Acorn 130 Outdoor Stairlift in your home in Michigan

After we have received the green light for your custom stairlift to be fitted in your home in Michigan a few days is all that is required to complete installation of your Acorn 130 Outdoor Stairlift.

Aftercare services for your Acorn 130 Outdoor Stairlift in your Michigan home

At Acorn aftercare is a top priority, as well as to us as a partner of America's leading stairlift manufacturer. We want to ensure you're always entirely happy with your Acorn Outdoor Stairlift.
Acorn's dedicated help desk is always just a phone call away 365 days a year. Extended stairlift warranties are available too, which means technicians will visit your home in Michigan in the unlikely event of a breakdown and also covers the cost of all callouts, parts and labor.

Acorn outdoor stairlift aftercare in michigan

Use the form below to arrange your FREE quote for a stairlift in Michigan.

Simply enter your details below and a trusted Acorn representative will be in touch to arrange a home survey and to provide you with your free no obligation quotation.
